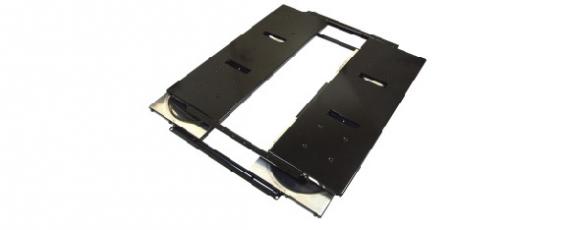

OSK04KN101 series Light weight anti-vibration device

Light weight anti-vibration device
Application
      Base isolation for server rack, information systems, high-precision, materials, art objects, etc.

Features

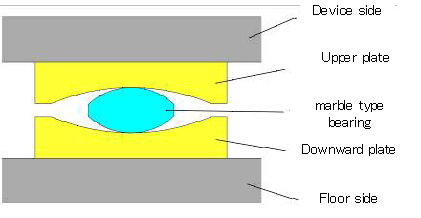

    1. The most simple base isolation device with marble plate inside the central part
    2. Earthquakes from all directions are changed to side movements by bearing effect and interfacial friction of marble type bearing lessens energy
    3. It has conflict functions of damping and restoring force
    4. High load resistance in comparison with ball bearing
    5. By connecting the attenuated pad you can change the attenuation together with vibration of installation place
    6. Light weight device
Effect

    Model Dimensions (㎜) Weight (㎏)
      A:Unit width D:Depth H:Height W:Width
    OSK04KN101A 344 1000 63 944 39.6
    OSK04KN101B 344 1000 63 1044 40.4
    OSK04KN101C 344 1000 63 1144 41.1
    04KN101D 344 1180 63 944 42.9
    OSK04KN101E 344 1180 63 1044 43.7
    OSK04KN101F 344 1180 63 1144 44.4
    Option:Resonance rubber mat (attenuation UP)
