OSK04SL series Three dimensional vibration removal damper

Three dimensional vibration removal damper
Application
    1. Measuring, inspection and control equipment vibration removal
    2. Audio, reflection and optics equipment vibration removal
Features
    1. Three dimensional vibration removal function

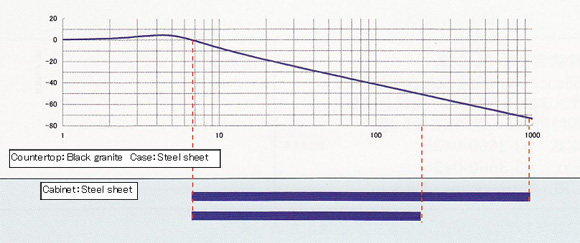

    2. High insultating vibration ( Unique frequency: 4-5Hz Insulating vibration level: Approx.6dB)
    3. No need for incidental work (Electric wiring, air piping, etc.)

Specification
    Main structure
    Countertop Black granite
    Case Steel sheet structure
    Damper DCS(No bouncing springs) type
    Pole brace Possible to control horizontal balance( manually operated)
     ModelSizeWeight(kg)Load weight(kg)*
    1 OSK04SL101 400×350×85 Approx. 14 12.3 - 54.3
    2 OSK04SL102 450×420×85 Approx. 19 10.5 - 52.5
    3 OSK04SL103 500×400×85 Approx. 21 9.1 - 51.1
    4 OSK04SL104 550×450×85 Approx. 26 6.6 - 48.6
    5 OSK04SL105 600×500×85 Approx. 32 3.9 - 45.9
    *Load weight has 6 types in each range
