OSK09TK101 Desktop type detector of metal foreign objects in aluminium foil packing

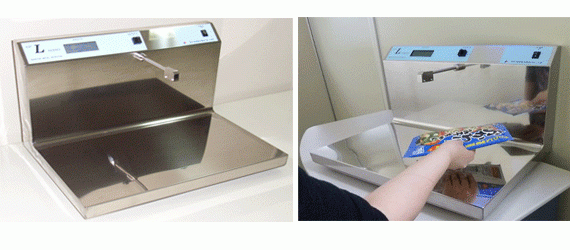

Desktop type detector of metal foreign objects in aluminium foil packing
Application
    Detection of iron and stainless particles in aluminum foil package as well as non-aluminum package at food processing line
Features
    • Can be applied to different type of packages, including aluminium or nylon package
    • Can easily detect foreign particles without being influenced by salt, vinegar or oil
    • It is possible to use it for liquid food products
    • Easy operation: no need to set conditions each time for wrapping packages or the food inside
    • Equipped with highly accurate magnetic sensor
    • Can bear to detect for the products of high temperature or even with  the moisture adhension
Effect
    • Can easily detect foreign particles without being influenced by salt, vinegar or oil due to the introduction of magnetic sensor
    • Easy operation. TK101 operation is only: Start→Stop, sensitivity switch
    • Can easily detect the products inside the aluminum foil package which was impossible to do by previous detectors
Specification
    Model OSK09TK101
    Dimensions approx. W500 x D365 x H324mm
    Weight 14.4kg
    Material  Stainless steel
    Transfer Direction Right --->Left
    Detection of foreigin material By buzzer rumbling
    Sensitivity switching 3 ranges
    Detection range Max. W200 x H160mm
    Carrying surface height Max. 160mm
    Carrying surface speed  approx. 25m/min.
    Detection Interval Min. 1 second
    Ambient operating temperature  0 to 60
    Water proofing Non-watertight type
    Carrying weight  5 kg/per 1 unit
    Power consumption 15VA
    Base, cable SUS304
    Accessory test piece td 3.0
    The specification of this device may be changed without notice
