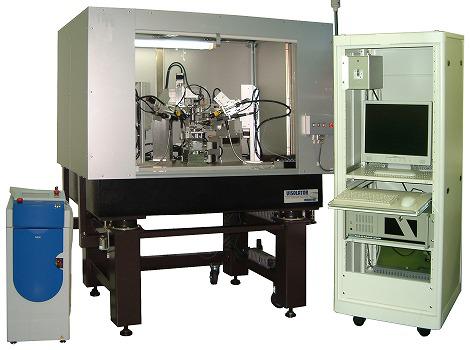

OSK01KG101 LD/PD automatic alignment system

LD/PD automatic alignment system
LD/PD automatic alignment system
Application
    Fixing YAG laser welding device for optimizing the position of the optical fiber junction photodiode and laser diode
Features
    1.  Automatic alignment by SUS automatic high rigid stage
    2. Original application software Cockpit, standardized systems and automated docking pack  alignment software, application software enabled to support variety of LD/PD
    3. High speed alignment by original power meter
    4. The optical order system
    Possible to design the system according to the customer's requests
Effect
    1. Stable alignment
    2. Compact design
Specification
    Model OSK01KG101
    Device mechanism 12 Axis Automatic (your special specifications are available)
    *LD/PD interchangeable fiber chuck
    Control Software Motion Control Cockpit (additional type optical tracking software)
    Computer built in device Motor control board / A/D board / image board
    Stepping motor driver 12 Axis(corresponding to micro)
    O/E converter Optical power of optical fiber voltage conversion
    I / O relay BOX YAG and air control valves, etc.
    Anti-vibration table and Protection cover The machine table which intercepts external vibration.
    The machine cover which intercepts optical reflection of YAG welding.
    Computer WindowsPC
    Items Distance Resolution
    LD/PD Stage unit X stage ±15mm 0.025μm
    Z stage ±15mm 0.025μm
    θstage ±60° 0.00005°
    Fiber Stage unit Z stage ±15mm 0.025μm
    θstage ±105° 0.00005°
    Sleeve Stage unit Z stage ±15mm 0.025μm
    YAG Stage unit Z stage ±50mm 0.025μm
OSK01KG101 LD/PD automatic alignment system

*Comments/Requests LD/PD automatic alignment system
