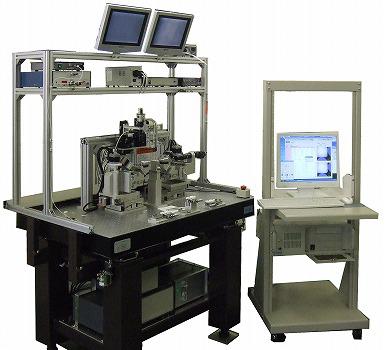

OSK01KG102 PLC Aligment System

PLC Aligment System
PLC Aligment System
Application
    The machine which assembles the fiber array and the wave-guide correctly in short time
Features
    1. By adopting the original rigid SUS stage, it will not be influenced by disturbances such as temperature and vibration
    2.  High speed alignment by original power meter
    3. The optical order system  Possible to design the system according to the customer's requests
Effect
    1. Low cost
    2. Compact design
    3. Easy programming with original sequential description
Specification
    Model OSK01KG102
    Device mechanism 12 Axis Automatic (your special specifications are available)
    * Holders of the waveguide array and is interchangeable
    Control Software Motion Control Cockpit (additional type optical tracking software)
    Computer built in device Motor control board / A/D board / image board
    Stepping motor driver 12 Axis(corresponding to micro)
    O/E converter Optical power of optical fiber voltage conversion
    UV light source Control of foot operation
    Dispenser Control of foot operation
    Anti-vibration table and Measurement shelf The machine table which intercepts external vibration.
    Computer WindowsPC
    Items Distance Resolution
    Input : Fiber array Stage unit X stage ±25mm 0.025μm
    Y stage ±15mm 0.025μm
    Z stage ±25mm 0.025μm
    θx stage ±8° 0.00078°
    θy stage ±8° 0.0006°
    θz stage ±8° 0.0006°
    Output : Fiber array Stage unit X stage ±25mm 0.025μm
    Y stage ±15mm 0.025μm
    Z stage ±25mm 0.025μm
    θx stage ±8° 0.00078°
    θy stage ±8° 0.0006°
    θz stage ±8° 0.0006°
