OSK07LP101 Multi-dimensional processing by picosecond laser and precise processing

Multi-dimensional processing by picosecond laser and precise processing

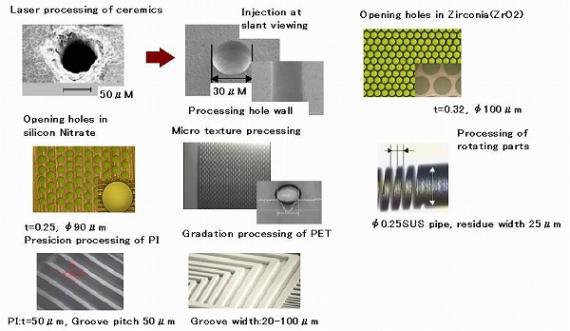

Application
    1. Precised laser nozzles processing of high hardness materials. Semiconductor probe cards, inkjet nozzles, fiber nozzles, jet nozzles, separator for fuel batteries
    2. Precised processing of composite materials or resin medical equipment parts, high-frequency electrical panel, semiconductor parts
    3. Microtexture processing of high hardness materials (Systematic formation, arranged little hollows)By conducting the microtexture processing of rotating parts, sliding guide parts, press ponch surface, it reduces surface area and lessen the frictional resistance
Features
      1. Precised laser processing of high hardness materials
        * It can conduct the processing of hard and brittle materials, such as machinable ceramics, aluminium, silicon nitrate, aluminium nitratec and so on
        * Since it is abration processing, the temperature influence is low and quality change territory is small
        * As the processed wall surface is flat, you can continue processing without secondary process
        * It can open the highly precised holes up to 1/10 in board of t=0.5mm thikness
        * It can control the straight hole and tapered bore, possible to open the high precision holes up to ±2μm
        * The sharp processing without the chipping at the laser exit side is possible

      2. Precised processing of clad materials, resin, and etc
        * It is possible to precisely proceed the resin materials such as CFRP multi-layer resin film, fluorine resin, liquid polimers, ferrite, polyemide, or PET

    1. Micro texture processing of high-hardness materials
      * By high, no-burr micro texture processing of the polished surface, you can reduce the frictional resistance of surface area and also it is possible
        to fullfill its role as an oil pool and fully endure the low-viscosity oil (the oil which comes from the plants)
      * By raising the functions of punch mold, the friction of rotating or sliding guide parts is reduced and hydrophylicity is raised
      * By controlling the dimple state, it becomes possible to control all enviroment from low to high friction
    We will process high hardness materials by precised laser nozzles according to customer's requirements.
