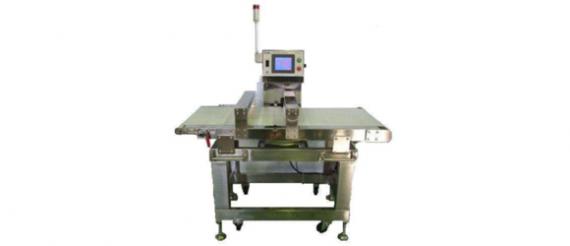

OSK09TK500250 Detector of metal foreign objects in aluminium foil packing

Detector of metal foreign objects in aluminium foil packing
Application
    1. Detection of iron and stainless particles in aluminum foil package as well as non-aluminum package at food processing line
Features
    1. Can be applied to different type of packages, including aluminium or nylon package
    2. Can easily detect foreign particles without being influenced by salt, vinegar or oil
    3. It is possible to use it for liquid food products
    4. Easy operation: no need to set conditions each time for wrapping packages or the food inside
    5. Equipped with highly accurate magnetic sensor
    6. Can bear to detect for the products of high temperature or even with the moisture adhension
Effect
    1. Can easily detect foreign particles without being influenced by salt, vinegar or oil due to the introduction of magnetic sensor
    2. Easy operation. NIP-Series operation is only: Start→Stop, sensitivity switch, speed regulation
    3. Can easily detect the products inside the aluminum foil package which was impossible to do by previous detectors
Specification
    Model OSK09TK500 OSK09TK250
    Length 1300 mm 1000 mm
    Belt width 500 mm 250 mm
    Aperture height 30・0㎜
    Sensor Magnetic type
    Inspection range Width 450mm (vertical) Width 230mm (vertical)
    Carrying surface height 800mm
    Carrying surface speed (adjustable) 10・0 m/min. 10・0 m/min.
    Display 5.7 inches, liquid crystal touch panel
    Operation panel Start / stop button, power supply switch
    Sensitivity change 5 ranges LED display
    Signal Red light
    Carrying weight 5 kg/per 1 unit 1 kg/per 1 unit
    Power supply AC100V, phase 50/60HZ
    Mass 140 kg 80 kg
    Base, cable SUS304
    Option Water proof meter
