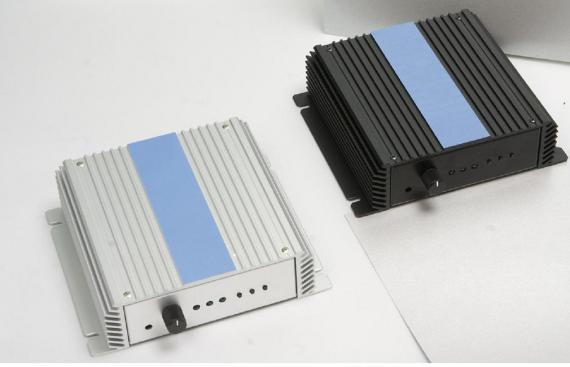

OSK15CH101 Early Earthquake Warning Device

Early Earthquake Warning Device
Early Earthquake Warning Device
Application
    It senses earthquakes and saves lives of people at the place where people gather daily, such as schools, hospitals, public places.
Features
    • The seismometer is integrated inside the device in order to warn  a few seconds prior to the earthquake occurrence by detection of preliminary tremor
    •  It manages to give the earthquake immidiate report among the users of Early Earthquake Warning Device (magnitude, latitude and longtitude of the epicenter)
    • It has 6 connection points, enabling to automatically announce and abeyance elevators, facilities, lighing, electrical doors' locks, etc.
Effect
    By knowing earthquake occurrence a few seconds prior to actual occurrence, people can have time to protect themselves and prepare to earthquake impact
Specification

    Model OSK15CH101
    Color Silver / Black
    Arithmetic Equation Terminal Operation Method
    Alarm Method Alarm by Pop-up disply on LAN PC and by sound
    Connection Point Output Non-voltage roop connection points 6circuits
    Connection Point Capacity Output 1:AC/DC Maximum Resist Pressure:24V Maximum Load Current:1A
    Output 2 -6:AC/DC Maximum Resist Pressure:24V Maximum Load Current:400mA
    Sound Output Line Output Headphone Output Sound Volume Adjustment Function
    Line Output RCA 600Ω/0dB Unbalance
    Headphone Output  Monoral
    LAN Interface RJ-45 100Base-Tx
    Communication Method IPv4 Socket Communication
    Power Source AC100V 50/60Hz
    Power Consumption 2W(Maximum)
    Outer Dimension 188.7(W) x 160(H) x 50.5(D)mm
    Operating Atmosphere Temperature:-10℃ to +50℃ No Condensation
    Setting Condition Indoor Only  Place Flat・A Wall-Hanging・Set Still
