OSK11WT101AB Small mist generation nozzle and small-type spraying device

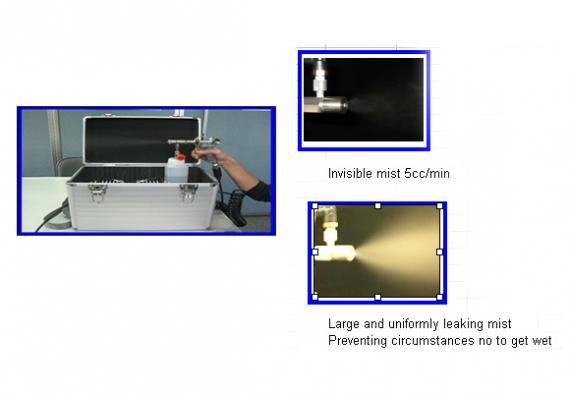

Small mist generation nozzle and small-type spraying device
Application
    1. Can spray antibacterial, antivirus, photocatalysis, deodorant, insecticide, and etc.
    2. Can be also used as demonstration for cooling large space or preventing heatstroke at a park before real construction
    3. 1type of nozzle can spray water or medicines (photocatalysis, water-based antimicrobal, antivirus deodorant) at the speed of 5cc/min.~100cc/min
Features
    1. Basing on the patent for the jet fuel injection equipment nozzle of JAXA (Japan Aerospace Exploration Agency) , the nozzle which produces and sprays artificial fog has been developed
    2. The diameter of droplets is fixed, very detailed, hardly to clog, the spraying at the low pressure, low energy is possible. Low cost (solved the problems of other existing nozzles)
    3. Due to the syphon-type nozzle, the narrow spraying (fixed shape) by simple mechanism becomes possible
Effect
    1. It is possible to produce and spray with low pressure, low energy and preventing circumstances not to get wet
    2. Gun equipped with a small-shape air compressor, an air misty nozzle and a medicine tank Small, light weight and easy-to-use system
Specification

    Model OSK11WT101A OSK11WT102B
    Type Spraying device with air gun Cmpact floor type
    Dimensions W42 × H22 × D20cm  W25 × H19 × D11.8cm
    Mass 8kg  4.2kg
    Power supply Single phase100V Single phase100V
    Frequency 50/60Hz 50/60Hz
    Spraying volume 5cc/min.~50cc/min. 5cc/min.~15cc/min.
    Electricity consumption 125w 100w
