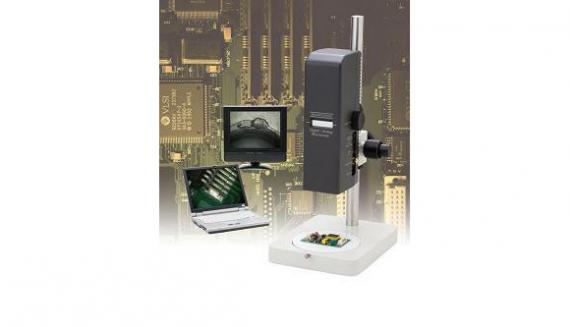

OSK11SC103 Digital/Analog microscope

Digital/Analog microscope
Application
    1. Quality control inspection
    2. Lab work and educational research
Features
    1. Can be connected to both PC and TV
    2. Continuous magnifiction from 0x to 300x without changing a lens
Effect
    1. Can easily make monitoring without choosing the output device
    2. Operation efficiency rises
Specification

    Model OSK11SC103
    Imager 1/4inch CCD 410,000pixels Operating and Storage Humidity Interface 20~80%(no-condensation)
    Effective pixels approx. 380,000 pixels Dimensions 85 x 80 x 205mm
    Interface Video Out Terminal:NTSC, RCA Connector Weight Approx.600g
    USB Terminal:USB mini B Compliant Standards VCCI, FCC
    (8bitVideoA-D, Maximum Resolution 720 x 480) Application SDA(CD included)
    Magnification 1~300x Camera Thread Input 1/4-20 UNC
    Light Source LED Optional Accessories XY Stand
    Image Settings Auto. XYZ Stand
    When the light is on: Fixed White Balance, AGC, Auto Shutter Speed MicroMeasure(Measurement Software)
    When the light is off: Auto White Balance, ATC, Auto Shutter Speed System Requirements Windows XP SP2 or later.
    Power Supply Voltage DC12V(AC Adapter AC100~240 50/60Hz) USB Port:Factory installed USB2.0
    Power Consumption 500mA CPU:Pentium 4 - 1GHz or above or equivalent AMD processor
    Operating Temperature 0~40℃ Not UVC compliant
    1. A stand is necessary, but not included in 11SC103 set. Stands are availabe from us or other suppliers
    2. Simultaneous output for TV and PC is not supported
