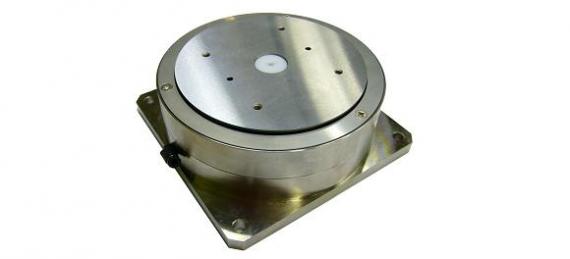

OSK12TC101 series Surface fitting / alignment device

Surface fitting / alignment device
Application
    1. It can precisely fit the surfaces of 2 parts with non-flat surface and keep it in such condition
    2. It can be applied to as assembly/alignment of parts, processing or measurement
Features
    1. 360°stabilized inclination angle drive is possible
    2. Very suitable for the high precision surface levelling
    3. It can be manufactured corresponding to the necessary weight (0.5~200kgf)
    4. It can unify the combined core point of measured object in advance
Effect
    1. It can help to manufacture at low costs in comparison with previous products
    2. Easy to install
    3. There are no structural parts above the stage surface so the large working space can be kept
Specification

    Model OSK12TC101A
    Load resistance 180[N] ※1 It is possible to make a drawing at your wish
    Angle value ±2[°]
    Angle diameter 66[㎜] ※2 It is possible to make a drawing at your wish
    Outer dimensions 122[㎜] ※3 It can be manufactured at your wish
    ※There are possible coverage area for 1 and 2
    ※3 outer dimensions depend on the space, so it may not comply with your requirements
    Model OSK12TC101B
    Outer dimensions φ60 x H52.25(mm)
    Weight resistance 30kg
    *Can be applied for surface fit of small parts
    Model OSK12TC101C
    Outer dimensions φ148 x H58.5(mm)
    *Can resist to the weight from the bottom
    Model OSK12TC101D
    Outer dimensions φ166 x H50.6(mm)
    *It is very suitable for screen capture by using glass plate
    We can produce the low and high load range to satisfy the needs of our customers
OSK12TC101 series Surface fitting / alignment device
