OSK13FS101H Static electricity removal device

Static electricity removal device
Application
    1. Removal of static electricity at the cell product line of assembly process
    2. Removal of static electricity at conveyer line of resins products and substrates
    3. Removal of static electricity to prevent foreign compound adhension
Features
    1. Adopt the newly developed flat electrode instead of the conventional electric discharge pin
    2. Its size is compact, just as palm size
    3. Implement long time stable removal of static electricity
Effect
    1. Compact design, low cost
    2. Maintenance frequency decreases
    3. Apply for the removal of static electricity at small area

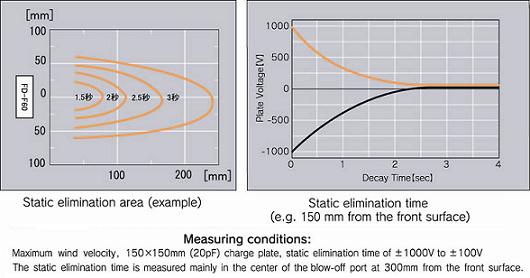

    graph
Specification

    Model OSK13FS101H
    Type Fan type ( loaded with propeller fan)
    Ion generation formula SMD formula (AC type)
    Electrode form Flat eletrode
    Static electricity removal performance Ion balance*1 ±15V(at shipment)
    Static electricity removal time*1 within 2.3sec.(at shipment)
    Ozone concenstration*2 50ppb
    Maximum air capacity 0.78m2/mm
    Output voltage 3800Vp-p(maximum)
    Input rating Electric source electric pressure DC24V±10%
    Consumption current under 1.1A
    Operating environment Ambient temperature +10~+40℃
    Ambient humidity 35~65%RH(No condensation)
    Body size W x D x H mm 67 x 50 x 100 (not including a convex part nor a stand)
    Weight approx. 370g (including a stand)
    Main function Air capacity regulation, decreasing heater for condensation of polar zone
    Option AC adapte x 1
    Input: AC100V-240V, Output:DC24V, 1.5A
    Maintenance/replacement parts FD-F-60 electrode FD-C-HD
    *1 At center of outlet, 150mm in front, at maximum air capacity, 150 x 150mm(20pF) charge plate, ±1000V→±100V
      These are measurements, not guaranteed rate.
    *2 At center of outlet, 10mmin front, at minimum air capacity, these are measurements, not guaranteed rate.
