OSK14IT101 Full color LED illumination for semiconductor plants

Full color LED illumination for semiconductor plants
Application
    LED illumination for semiconductors plant
Features
    machinery
        Common

    1. Waveleght can be optionally set (Choosing the wavelength:Please, check with the specifications items)
    2. Used only necessary wavelength (adding the wavelength)
    3. Free color / temperature performance by remote control
    4. Low energy, Eco product

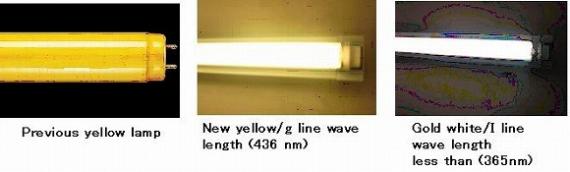

    New yellow (replacement of previous fluorescent tubes)
    1. Yellow lamp LED illumination, that can control the 500 nm light emission brightness, that couldn't be controlled by previous LED illumination(previous types used to cut the wavelength by filter)
    2. Comparing with previous types, green and red can be clearly seen (*g line:main wavelength - 436nm)
        Gold white (type, corresponding to the I line*)

    1. Ideal for those, using wavelength less than 440nm
    2. Can be used together with usual white color lamp without any inferior (*I line:main wavelength 365nm)
Effect
    1. No unnecessary costs with effective light source
    2. Advanced color reproductivity, that doesn't cause tiredness of your eyes
Specification
    LED illumination for full color semiconductors
    For semiconductor's plant (yellow / white color)
    Product name Electricity consumption Outer dimensions Brightness less than 1m Beam angle Total number of lumenis
    OSK14IT101A 10 598×32 90lux 120 500
    OSK14IT101B 21 1198×32 210ux 120 1000
