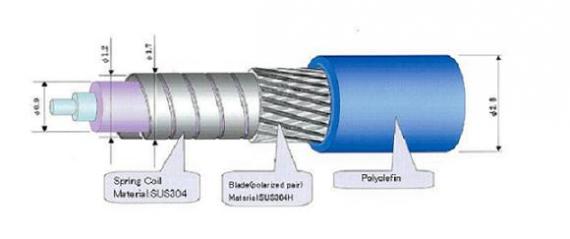

OSK19WY102 Next generation type high hardness light cable

Next generation type high hardness light cable
Application
        Light cable, that prevents the light fiber to bend more, than acceptable bending
Features
    1. It is 40 times more durable, than previous cords. (possible to nail by steppler)and its outer diameter is φ2.8㎜
    2. High hardness light cable, most suitable for indoors wiring. (obtain the new design for practical use certiificate)
    3. If R15 SM fiber is used, affordable bending diameter can be reduced up to 15 mm
    4. Due to the new function of shape memory, the free wiring is possible
    5. It prevents the kink occurrence and solves the problem of discomfort communication
    6. Due to the flame-resistant LSZH specifications, it can use the environment-friendly materials
    7. The light connector is possible to use. Low cost
Effect
        The light connector is possible to use. Low cost

        - Very suitable, especially for the equipment, that requires reliability (for example, nuclear power plants ・radiation observation areas)
Specification

    Model OSK19WY102
    Type Simplex cord
    Standard outer diameter (mm) 2.8
    Standard mass (kg/km) 20
    Permission tension (N) 400
    Permission lateral pressure (N/50mm) 200 x 1 min preserved
    increase in loss ≦0.1dB
    Permission bend radius (mm) 15
    Application fiber SMF/MMF (Gi/Si)
