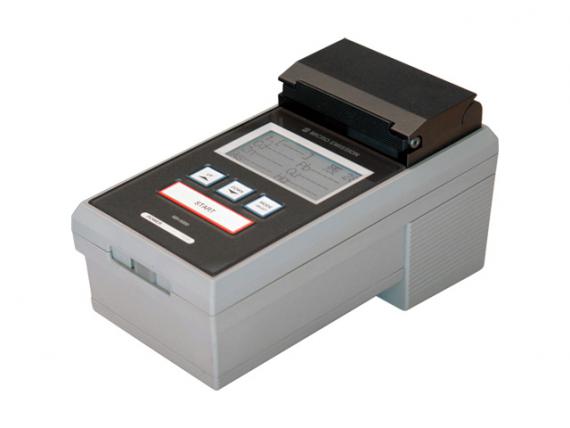

OSK29ME101 Ultra Compact Atomic Emission Elemental Analyzer

Ultra Compact Atomic Emission Elemental Analyzer
Ultra Compact Atomic Emission Elemental Analyzer
Application
    1. Compact luminescence spectrum analyzer by patent technology "Liquid Electrode Plasma"
    2. Production control, soil tester, water quality test, food tester at plants, working fields, agricultural fields, on board of the ships, etc
Features
    1. Quantitative measurement of multiple minuscule amount elements in liquid
    2. Gas bombs nor measuring reagents  are necessary
    3. Possible to take measurement in the fields by batteries
    4. Detection limit is 0.1ppm - 100ppm
    5. Possible to measure with minuscule amount measuring reagent (40μℓ)
    6. Handheld compact design:  Gross weight 1.4kg, size 204mm(L) x 105mm(W) x 114mm(H)
    7. Minimize contamination by original measuring containers for measuring reagent
    8. Measuring by original software and easy operation
Effect
    1. Compact design enables to carry around
    2. Quick analyzing
    3. Easy operation, even beginners can handle with
    4. Less maintenance

Specification

    Model OSK29ME101
    Size D204 x W105 x H114mm
    Weight Approximately 1.4kg(with Batteries)
    Power Source Batteries(AA x 6sets)or AC Adapter
    Measurement Time One minute
    Maximum Measurement Elements Maximum 6 elements(Objective elements setting is changeable)
    Measurement Mod 4 modes(Adjustable to different liquid measurement reagents, different elements)
    Display Digits 2 or 3 digits
    Detection Limit 0.1ppm - 100ppm(Depending on element or measurement reagents)
    Numbers of Stored Data Density data 50 measurements, luminescence spectrum 1 measurement
    Operation with PC  LEP Analyzer Luminescence spectrum display
    Quantitative Analysis(Absolute calibration curve method)
    MH Manager Voltage impression setting by each mode
    Setting of every element calibration curve and wave-length used
    MH Reader Capturing density on the display (50 measurements)
OSK29ME101 Ultra Compact Atomic Emission Elemental Analyzer
