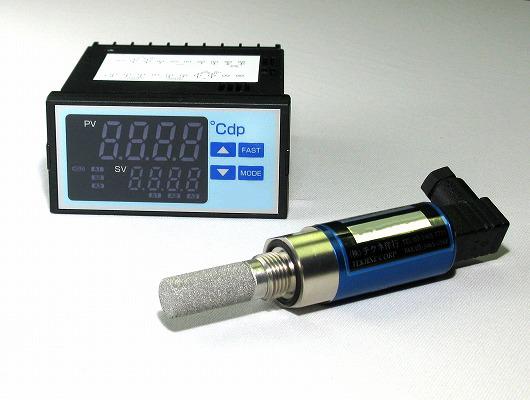

OSK29TK102 Dew point transmitter

Dew point transmitter
Dew point transmitter
Application
    1. Compressed Air
    2. Moisture maintenance for Furnace, Power plant
    3. Glove box manufacturer

Features
    1. Wide measurement range from -100 to +20℃dp
    2.  +/-2℃dp
    3.  Short delivery time
    4. Traceable to NIST
    5. High quality, good performance

Effect
    1.  Accuracy +/-2℃dp
    2.  Low cost
    3. Good repeatability

Specification
    Model OSK29TK102
    Measurement range  -100~+20℃ dp
    Accuracy   ±2℃ dp
    Power    12~28V DC
    Output    4-20mA
    Operating temperature  -20~+60℃
    Operating pressure  10-4Pa~30MPa
    Flow rate   0.1~10ℓ/min(With our standard block)
     0.5~10m/min(Into the samples directly)
    Weight    0.12kg
    Option parts OSK29TK102

    • Scaling range -100~+20℃ dp
    • Power  100~240VAC+/-10%
    • Output 4-20mA
    • Current consumption 8VA
    • Operating temperature  0~50℃
    • Weight   0.3kg
    • Size  96W x 48H x 116.5D mm
    • Panel cut size 92W x 45H
    Starter-Kit with sensor block

    • Starter Kit: Includes Filter, Needle valve, Flow meter, SUS pipes
    • Sensor block: with two 1/8" female threaded
