OSK21NO101 Microscope for observation of vector magnetic domain

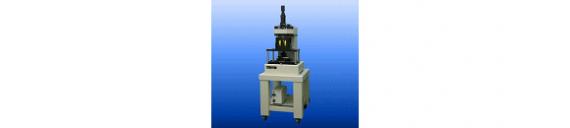

Microscope for observation of vector magnetic domain
Application
    1. Microscope for observation of magnetic domain, that enables the detection of magnetization direction by observation of 2 in-plane directions/3in-plane direction, 3 way pole.
    2. The device for observation of magnetic domain structure, using vertical Kerr effect and polar Kerr effect
Features
    *Optional items
    1. By automatic switching of inserting direction of observation light, you can vectorally display the magnetizing direction
    2. Domain observation including magnetized direction
    3. To obtain magnetization hysteresis image by magnetic field table
    4. High contrast
    5. Automatic selection of magnetized direction by software
    6. Easy change of objective lens (5X*, 10X*, 20X, 50X, 100X*)
    7. Oscillation of magnetic field at desired direction by orthogonal
Specification
    1. Observed object:vertical magnetic record materials, in-plane magnetic recording materials, magnetic head, MO medium, silicon sheet, amorphous magnetic materials, permanent magnet material, magnetic sensor material, all other magnetic materials
    2. Observed items:observatiobn of magnetic structure, vector displaying of magnetic direction, observation and record of magnetic domain image, brightness hysterysis curve line
    3. 310 mm movable in a horizontal direction, (360 degree direction)
    4. Performance
    Model OSK21NO101
     Direction sensitivity Kerr rotation angle 0.01°
    Observation sphere 250x200μm(20 times), 100 x 70μm(50 times)
     Space resolution Approx. φ1μm (when 50 times object lenses are used)
    Electromagnetic field ±200, Oe(orthogonal air-core electromagnet)
    ±1kOe(in-plane one axis electromagnet)
    Optional devices
    1. Orthogonal electromagnet(Coreless, or with iron core)
    2. Magnetization power supply
    3. Objective Lens(5x, 10x, 100x)
OSK21NO101 Microscope for observation of vector magnetic domain
