OSK22AP101A,B Controlled potential electrolysis, diffusion type ozone gas monitor

Controlled potential electrolysis, diffusion type ozone gas monitor
Application
        It can be used as ozone meter or alarm at the density checking areas
Features

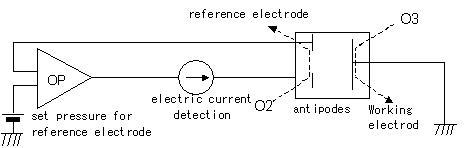

      1. It can analyze the low-density gas by applying the controlled potential electrolysis method at gas electrode
    1. Easy sensor changing just by plugging off connector
    2. The long-distance real-time density observation is possible due to the transfer output
Effect
    1. Its compact design allows intoroduction to many industries
    2. The long distance, density observation is possible
Specification

    Model OSK22AP101A OSK22AP101B
    Detection Dispersion type
    Density display 3 digits, LED, minimal display 0.01ppm 3 digits, LED, minimal display 0.01ppm
    Measurement range 0・.00ppm 0・0.0ppm
    Measurement precision within F.S±10%(calibration)
    within F.S±25%(one year)
    Repeatability ±5%
    90%response time 90 sec
    Sensor life 1 year(Non-calibration life)2 years(output life span)
    Alarm setting value 0.10・.00ppm(optional settings) 1.0・0.0ppm(optional settings)
    Alarm setting Adjusted at alarm settings volume
    Alarm method Lamp flashing, contact point output *At the time of Power OFF, N.C
    Alarm precision ±30%
    Output Density signal:4・0mA Isolation type, load resistance - less than 600Ω
    Alarm contact point :1c contact point, 0.5A, AC125V
    Power supply DC24V±10% 50/60Hz
    Consumed electricity Approx. 10VA
    Connecting Terminal block
    Operation temperature -5・0℃(Recommended range 10・5℃)
    Humidity 30・5%R.H.(Recommended range 40・5%R.H.)
    Dimensions W154 x H113 x D76mm without protruded objects
    Weight Approx. 750g
    Attachement M4 screws
    Other functions Zero adjustment, Span adjustment, Factors, Adjusting functions Displaying the snapping wire, alarm output check
    Accessories Adjustment driver, fuses(0.5A), Operation manual, Warranty *Power supply cable is not supplied
