OSK22SB101 Air flow meter with the ventilated commutator

Air flow meter with the ventilated commutator
Application
      1. OSK22B101 Porous pitot tube air flow meter with ventilated commutator (Air flow meter that measures duct inner air flow)
      2. Speeding up the saving energy and lower cost by reducing the carrying power (Promoting enviromental management)
      3. - Controlling the optimal volume and balance of ventilated air and air from outside

        - Controlling the optimal volume of ventilated air of CAV・VAV system

        - Maintenance-free

        - Controlling the volume of air flow and providing the proper operation

      1. Stable quality of product
      2. - Controlling the air volume at the medical supplies production plant or laboratory

        - Clean room for production of semi-conductors or liquid crystall

        - Controlling the process of painting, coating and drying of high-function products

        - Controlling the air volume at surgeryroom, radiation materials storage of biohazard hospital

      1. Providing the safety of working atmosphere
      2. - Controlling the volume of air of equipment for elimination of bad smell or dust or VOC disposal equipment

        - Controlling the ventilated and exhausted air volume at the plants, incinerator, or sewer systems

        - Controlling the volume of air condition or ventilated/exhausted air at electricity generation plant

        - Controlling the air flow of facilities for flour mill or steelmaking
Features
    1. Compact design that includes rectification structure and sensor part inside the metal case
    2. By making the rectification structure, made the shape of lattice, the pressure loss and running costs are reduced
    3. Uses same method of pressure difference as at the pitot tube and orifice
    4. Sensor consists of 2 midair cylinders and opens measuring hole, checking the flow pressure at the upper (full pressure) and lower (static pressure) area
    5. Depending on the position of the hole, the high-precision measurement of Reynolds number area becomes possible
Effect
    1. The materials of the main structure are chosen from stainless steel or aluminium, galvanized steel plate, and etc. to applied for various usage
    2. Saving the space for installation:Due to the use of rectification lattice inside, the number of straignt tubes is reduced
    3. Compact design :By unifying the rectification lattice and sensor、the installation at the narrow space becomes possible
    4. Increased detection pressure difference:the detection pressure is 2-4 times bigger than of usual pitot tube and the rate of reading error becomes much lower
Specification

    Model OSK22SB101
    Type of product Porous pitot tube air flow meter with ventilated commutator

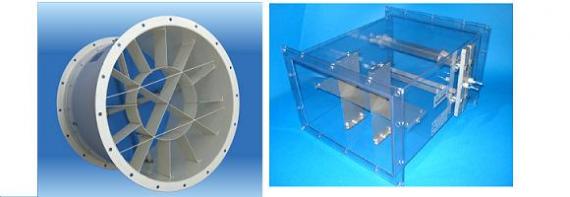

    Shape Square shape unit Round shape unit
    Dimensions Diameter 100 - 1500mm. Up to 1,000mm 50 mm pitch is used above 1,000mm, 100mm pitch is used Diameter 100-1,500mm. Up to 1,000mm 50 mm pitch is used above 1,000mm, 100mm pitch is used
    ※ There is a small caliber unit 40 - 80A
    Conditions for use Air speed 2.5 - 25m/sec
    Air volume Air volume of the above-mentioned air speed
    Temperature -50 to 200deg.C(*
    Humidity No condensation
    Accuracy +/- 3%(OR)
    Others Flange type is angle
    (Can be changed to flange plate)
    *) In case you use the standard accessories (the silicon O-ring and packing)
    *) In case, you don't use the O-ring packing, the temperature range of stainless welding type is -50 - 400deg.C
    *)For making the signal output and displaying the air signal flow and air speed, the optional indicator and transmitter are necessary.
    Structure parts and materials
    Parts Material
    Sensor SUS304/Aluminium (Allmight processing)
    Rectification lattice SUS304/SEHC(Coating)
    Casing SUS304/SEHC(Coating)
    Flange SUS304/SS400(Coating)
    Flange duplicate SUS304/SS400(Coating)
    O-ring and packing Silicon Q(Si)
    *) Stainless welding type has no O-ring and packing
    *) Using with SUS316 is possible
