OSK22CO101 Ultrasound density meter

Ultrasound density meter
Application
    1. This device can continuously measure the density of slurry by the ultrasonic attenuation method at line
    2. It can measure the density of different types of slurry, such as painting materials, separating powder, all electronic materials, lime or mineral slurry, sludge water, dirty water or industrial waste fluid processing slurry
Features
    1. It doesn't get influences by color・pH or electrical conductivity
    2. It is possible to make measuremenrs of low and high density
    3. Due to the use of controlling unit (patented), it became possible to reduce dratically the influence of bubble bath
    4. It can easily operate zero adjustment and density calibration
Effect
    1. Unlike laser or micro wave type, it doesn't get influenced by color, pH or electrical conductivity
    2. Comparing to the laser type, high density measurement is possible
    3. Same as micro wave type, it doesn't get influenced by vibraton of sensor, electric waves or electric field
    4. As there are no swelling at sensor, like at the microwave type, its structure is very easy to clean and doesn't get dirty
    5. Due to the use of controlling unit (patented) by two cycle frequency measurement, it became possible to reduce the influence of bubble bath
Specification

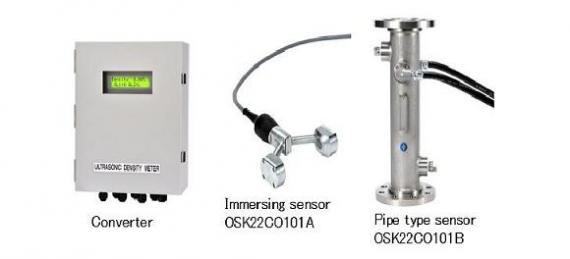

    Converter Specification
    Model OSK22CO101
    Range of measurements 0 - 40dB
    Accuracy ±5%FS
    Dimensions(mm) W240 x D139 x H392
    Sensor Specirication
    Model OSK22CO101A OSK22CO101B
    Immersion type Pipe type
    Frequency 2/3/5MHz 1/2/3/5MHz
    Dimensions(mm) W254 x D38 x H260
    Pipe size - 50A/80A/100A/150A
