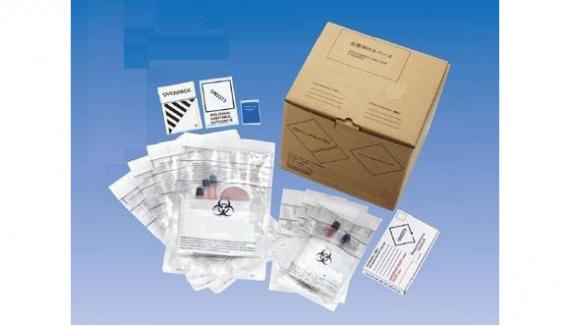

OSK39SG101A5, B4 Infectious materials transportation container Pouch

Infectious materials transportation container Pouch
Application
        Pressure-resistance, sealed up box (secondary containers) which can safely transport infectious hazrdous materials such as clinical specimen, clinical trial specimen.
Features
    1. It doesn't leak under the temperature of -40℃・55℃ and pressure 95kPa (Have been tested and verified by Japan's third party's public institution)
    2. It is attached with water absorption, cushioning material which can contain first containers such as small testing tubes or blood collecting tubes
    3. Putting it inside of the outer container, it can be used as the third container for air transportation of clinical or clinical trial specimens, satisfying PI650 which corresponds to the IATA packing standard
Effect
    1. High durability, provided by "Check valve" system
    2. Low cost
Specification
    The pouch with high leakage resistance which are verified as matching to the IATA standard by the 95kPa pressure resistance test, conducted by Japan third party's public institution. It can be used as the secondary transportation container for infectious stuff Category B (UN3373).
    Model OSK39SG101A5 OSK39SGB4
    Size Pouch outer dimensions:250×175(mm)
    Pouch effective internal dimension:
    150×155(mm)
    Pouch outer dimensions:385×260(mm)
    Pouch effective internal dimension:
    260×240(mm)
    Structure OSK33SG101A5 main body x 20 pcs
    Water absorbtion bag x 20 pcs
    (Water absorbtion bag requires 15cc test tube with 3 or φ90mm, Pocker, that can contain 1 Petri dish
    OSK33SG101B4 main body ×20 pcs
    Water absorbtion sheet x 20 pcs
    (Water absorbtion sheet dimensions:250×330(mm))
    AppliedBOX BoxA, BoxB BoxB
    ※ Please, use pouch together with box (BoxA, BoxB)
    <Consumption articles for replenishment>
    Product name Q-ty
    Water absorbtion bag (Water absorbtion bag has a pocket wihich is available to storage 3 of 15cc test tubes or 1 of φ90mm petri dish 20 pcs
    (Water absorbtion sheet dimensions:250×330(mm)) 20 pcs
