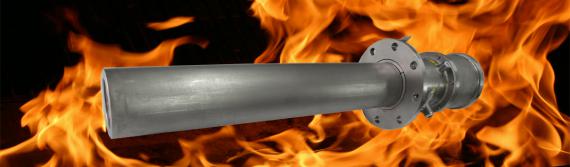

OSK41SJ-100 Heat Resistant Camera System for Industrial Furnace

Heat Resistant Camera System for Industrial Furnace
Heat Resistant Camera System for Industrial Furnace
Application
    • Enabled installing camera inside of high temperature furnace for clear and sharp images.
    • Give efficient solution for economical operation through monitoring directly inside of high temperature furnace in real time
    • The best soluion for the Black Boxed inside of industrial furnace

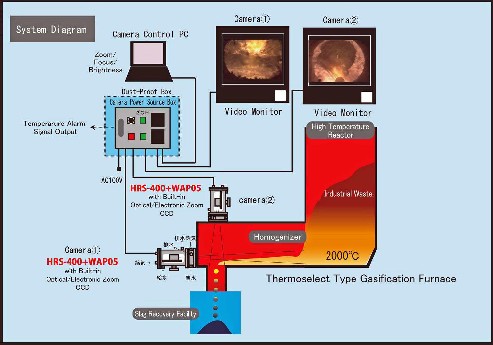

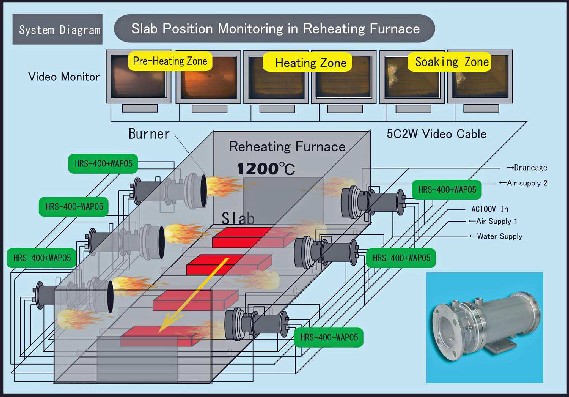

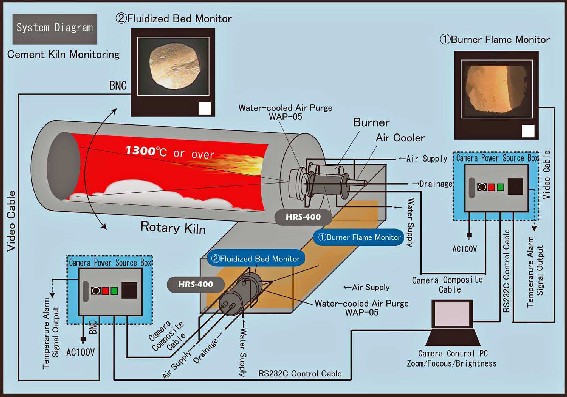

    • Steel manufacturer, thermal power generation plant, glass manufacturer, cement manufacturer
Features
    • World's first patented cooled jacket mounted CCD Camera system
    • It is durable at 1,500deg.C
    • High resolution images 5 mega pixels captured directly from lens inside furnace
    • Durable over more than 10 years usage

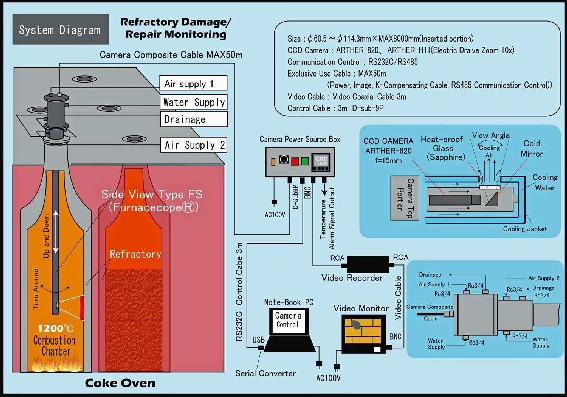

    • Proven technology: 8 meter length camera inside of the coke oven
Effect
    • Improvement of precise & safety heat control
    • Reliable performance
    • Easy maintenance
    • Minimize fuel consumption & maintenance cost
    • Reduce CO2 emission

Specification
      Standard Type Highly-functional Type
    Item OSK41SJ-100 OSK41SJ-16 OSK41SJ-400 OSK41SJ-900 OSK41SJ-1000
    Outline dimensional drawing 140φx220 1555φx245 165φx280 180φx384
    External cylinder diameter(mm) 114.3(100A) - 139.8(125A) - 316.5
    Material  SUS304, SUS303
    Anterior aspect flange - With anterior aspect of flange Combination with WAP-05 With aterior aspect flange -
    Operating ambient temperature 150deg.C MAX
    Imaging element effective pixels 1/2 inch CCD 380 thousand pixels 1/2 inch CCD 410 thousand pixels Depends on camera usage 1/3inch CCD 410 thousand pizels 1/2 inch CCD 410 thousand pixels
    Horizontal angle of view 48 degrees fixing  50 degrees or higher 41~6degrees 8X zoom 55 degrees 18X zoom
    Horizontal definition 450 TV lines 470 TV lines 472 TV lines 480 TV lines
