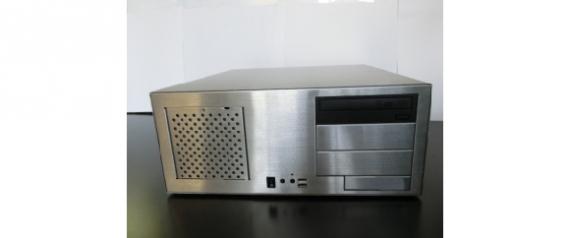

OSK51MI40 High performance flaw detection image processing device

High performance flaw detection image processing device
Application
      Flaw inspection image process
    1. All types of round printer parts (Photosensitive domra・Rubber roller・Shaft etc)
    2. Liquid crystall glass, its parts(Polarized film・Light-guiding plate・Diffuser・Color filter)
    3. Patch
    4. Plastic container
    5. Processing paper
    6. Automobile parts
    7. Semi-conductors
    8. Food industry
Features
    1. Due to the introduction of 5000 images frozen light sensor (CL-500), the high quality image is guaranteed
    2. Its original algorithm allows to proceed flaw expansion and smoothing noise component at high speed with accuracy.
    3. Due to the saving of flaws image and address information and equipping LAN, data control became much easier
Effect
    1. It can detect the flaws even at the dark places or detect the thin stripes or unevenness Even if there is a shading or unevenness of brighthness of inspected object, it can detect the flaws at real time
    2. Very good yield rate due to the algorithm of noise elimination and emphasizing flaws over the experience in the high-precision inspection area.
Specification

    Model OSK51MI40
    Camera connections  5000pixels, 7450pixels  Camera max. q-ty - 2
    Clock 2 types - 10 and 40 MHz
    Hardware processing Processed to point the change in brightness of flawed parts in real time mode
    Real time flaw detection,Hardware LUTprocessing, Interpicture operation
    Subrtraction of scan information, (real-time processing), creation of
    run length data of flawed parts
    Software Sheets inspection software, Long objects(folded)inspection software
    processing Flaw parts map indication function
