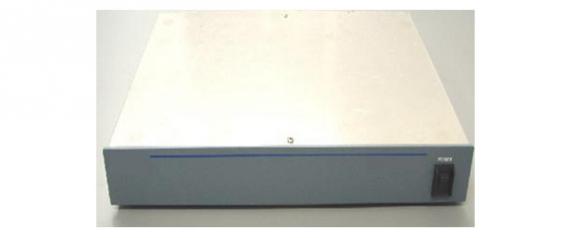

OSK51MI2000 High-performance flaw detection image processing device

High-performance flaw detection image processing device
Application
    1. Inspection of liquid crystal, plastic container bottom part, photogravure, and optical film
    2. Inspection of engine block processing surface blowhole, mission case processing blowhole,and engine block blowhole
    3. Inspection of fuel batteries separator flaws, hollows, pinholes, and etc.
Features
    1. High-speed/High precision flaw detection algorithm processes hard drive
    2. It has unique recursive filter which applies to 200 megapixels white/black camera,and real time noise cutting functions
    3. Special algorithm for automobile parts flaws inspection, optical film sheet visual inspection
    4. Inspection algorithm for eye medicine container (deformation plastic container), and battery separtator with complex unevenness
Effect
    1. Due to the high precision of flaw inspection, it can quickly inform of the problem to the worker at the production line
    2. Very good yield rate due to the algorithm of noise elimination and emphasizing flaws over the experience in the high-precision inspection area.
Specification

    Model OSK51MI2000
    Camera 2mln pixels white/black area sensor camera Camera q-ty 1pc
    connection (By using USB 2.0, it is possible to connect it with 4 PC at the same time)
    Hardware processing Processed to point the change in brightness of flawed parts in real time mode
    Recoursible filter (Real-time noise cut)
    Real time flaw detection,Hardware LUTprocessing, Interpicture operation
    Inspection range (Wind),creation of run length data of inspected parts
    Soft processing Automatic settings of automatic-recognition of inspection range, inspection soft, flaw parts map indication function
