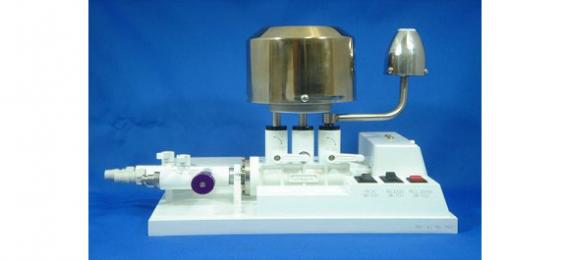

OSK61SF101 Small shape high calorific value burner

Small shape high calorific value burner
Application
        High calorific value burner with highly precise operations applied for various gases
Features
    1. Fuel gases can be various kinds of gases
    2. It uses the compressed air source, supplied from special compressor, so it can produce large amount of heat
    3. It is possible to burn without the soot by controlling the fuel and air flow
    4. It uses 2 burners - high calorific main burner / sharp burner wirh sharp flame
    5. For raising opration efficieincy, the burner can be turned to different angle by the electric drive
    6. Temperature of burning gas is 1700℃
Effect
    1. Quiet atmosphere
    2. User can conduct the long-time precised operation without getting tired (Motor drive tilt structure)
    3. Operator can set burner into optional angle (Motor drive tilt structure)
Specification

    Model OSK61SF101
    Max heat quantity 4500Kcal/h
    Flame type Concentrating flame~dispersing flame, sharp flame
    Burner diameter main burner Φ30~φ40
    sharp burner φ8
    Air volume 35~80L/min
    Dimensions W260×D180×H200 mm
    Weight approx 2.4㎏
