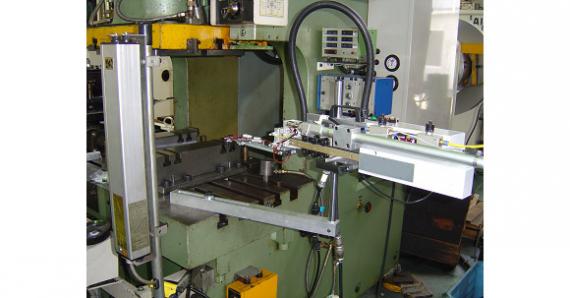

OSK01KS101 Universal ejection device for injection molding machine
Application
- Press processing plant
- One-shot process・Coil continuous blank process
- Suitable for 15t・50ｔ press machine Possible-to eject working size 200ｘ400mm, weight is maximum 500ｇ
- It can be applied to all operations which follows the horizontal movements of vertical machining
Features
- Small shape ・Light weight ・Universal mounting
- Planning operations are simple
- Possible to consult for process maching including metal structere which are easy to eject
- Power can be supplied from press machine
- Equipped with vaccum chalk （can be also applied to other chalking）
Effect
- Much safer. Hand in is 50% reduced
- Can be used for standartization of press structure (dropping from the up and leaving down) during the one-shot process.
- The minimization of working person at coil line becomes possible
Specification
| Model name | OSK01KS101 |
| Driving method | Air cylinder（Non-oil supplied type） |
| Air pressure | 0.5mpa |
| Power supply | AC100V（Consumed electricity -less than 10W） |
| Operation speed | 650mm/s |
| Upper/Lower stroke | 200mm* |
| Horizontal moving storoke | 400mm* |
| Load capacity | less than 500ｇ |
| Absorption method | Vacuum/Magnet |
| Weight | approx. 8kg |
