OSK15YT series Office Security Unified control system

Office Security Unified control system
Application
    Office security system
Features
    • One software can control different identification systems
    • Compact design which doesn\\\'t require much space
    • It is possible to control the electric key directly
    • It can make operation automatically in \"stand alone\" mode
    • Equipped with IC card reader and numeric keypad
    • Identification engine is substrated
    • It is possible to save the data at identification device
Effect
    • Operation at low cost is possible
    • Work efficiency is increased due to the high-function control application
Specification

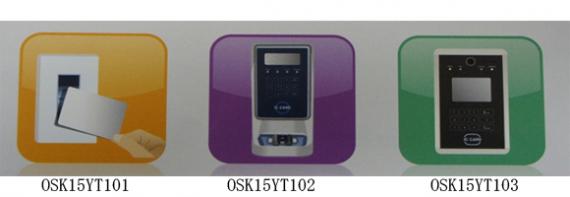

    Model OSK15YT101
    Item Specification
    Card Variety ISO18092 Standard Felica & Mifare Correspondence
    Readable distance Mifare approx.30mm
    Felica traffic card approx.10mm
    Display Red, blue LED
    Size (mm) W70 x H120 x D23(9mm projecting part)
    Operating environment Temperature: 5・5℃( no condensation)
    Model OSK15YT102
    Item Specification
    Number of people for registration 1,000 (option: 2,000)
    Identify accuracy Outsider acceptance: under 0.001% Principal rejection under:0.01% ( one to one identification)
    Identify speed one to one identification approx. 1sec.(after the finger is set to vein ID device)
    Size (mm) W135 x H260 x D100 (not including projecting part)
    Operating envrionment Temeprature: 5・5℃ (no condensation)
    Model OSK15YT103
    Item Specification
    Number of people for registration 1,000
    Identify speed approx. 1sec. (one to one identification)
    Identify accuracy Outsider acceptance: under 0.01% Principal rejection under:0.1% ( one to one identification)
    Identify log 1,000(with face image) off-line
    Card variety (standard) ISO18092 standard Felica & Mifare correspondence
    Size (mm) W140 x H225 x D50 ( not including projecting part)
    Operating environment Temperature:5・5℃ Humidity:30・0%RH(no condensation)
