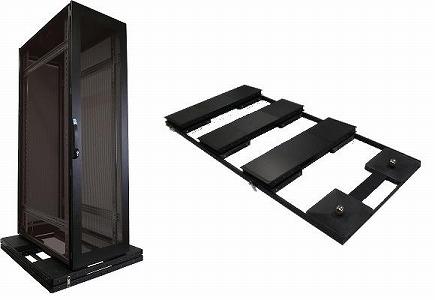

OSK04TC101 Vibration-reducing platform (large type, for heavy weight load)

Vibration-reducing platform (large type, for heavy weight load)
Application
    Vibration-reducing platform for protecting the precised electronic devices from vibration or impacts, caused by earthquake
Features
    1. It provides the most suitable design by combining the ISO-MKII, ISO-MKIII and Best-Mount products which fits the weight and size of carried device
    2. Easy desgin in consideration with weight distribution of large and heavy equipment by signgle or joint
    3. Seismic isolation system by ball bearing

Specification
    Model: OSK04TC101
    1. Load weight (Load resistance)
      - ISO-MKⅡ (1.2t/1plank, 2.4t/2 plank)
      - ISO-MKⅢ (1.8t/1plank, 3.6t/2 plank)
      - It is manufactured especially for jointing heavy devices that exceeds 1.0t
      As for size is over 1.5m
    2. Seismic isolation direction
      - Horizontal 360°. Can reduce the earthquake waves signal, coming from all directions
    3. Seismic isolation efficiency
      - Evaluated by AC156 (Testing waves for long period self-estimation) of ICC-ES (US technology evaluation organization)
    4. Max. displacement value (movable scope)
      - Can move to 310 mm in horizontal direction (360°direction)
