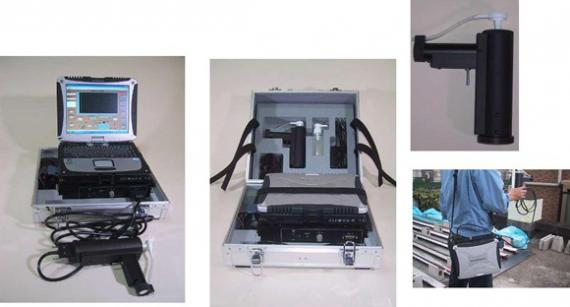

OSK29TT101 Ultrasound bolt length measurement device

Ultrasound bolt length measurement device
Application
        Non-destructive device for inspection of the lock bolts, large structure fixing anchor bolts or un-known length of burried steels and for reinforcement of tunnels and slopes

    1. Reinforcement of the walls during the tunnel digging
    2. Reinforcement of the walls during the digging of underground cavesReinforcement of slope (diagonal)(Prevention of slippery for earthquake or wind disasters )
    3. Reinforcement of slope (diagonal)(Prevention of slippery for earthquake or wind disasters )
    4. Conventional tunnels constraction for earthquake resistance (Steel sheet pile arch)
    5. Reinforcement of gulf shore for earthquake resistance
    6. Checking the shape of anchor bolt for fixing structure after construction has finished
    7. Checking the fragility of buried steel after long time passed
    8. Checking the rupture of reinforcement steel bar
Features
    1. Applications/purpose: length measurement
    2. Operating difficullty: even the amateur can operate
    3. Measuinrg ability: more than 6m is possible (General ulstra sound defect detector is 3-4m at maximum)
    4. Measuring efficiency (importatnt): the polishing of bolt edge is unnecessary (0min/per bolt)
    5. Measurement report: software for JH
Effect
    1. Equipped with the function which can coat eco-jelly, easy operation of sound probes with three actions, large LCD display, simple operating buttons, and help function
    2. It doesn't require any specialized knowledge
    3. Can save big amount of dataIt has software enabling user to play it at other PC. Using it with other electronic files is possible
    4. It has software enabling user to play it at other PC. Using it with other electronic files is possible.
Specification

    Sounding probes
    Model  UBS-5KR Oscillator protection cap UBC-20R(Sounding probe cable diameter 20Φ)
    Ceramic oscillator  Diameter 20mm 5MHz resonance Outer dimensions  L147 × H188 × D45
    Trigger switch Ultrasound waves, wave freezing Weight 500g (Eco-jelly)
    Eco-jelly Put inside pump type coated container, 100g Sounding probe cable  (Model:UBL-3M) Cable lenght 3m
    Main body and display
    Model OSK29TT101
    Measurement method Ultrasound pulse eco type (1st base corner)
    Transmission pulse Pulse changeable burst wave
    Transmission time (Default)(0.05mS), Short, Medium, Long (choose)
    Transmission output L, M, H, (Choose) Usual measurements is at M range
    Transmission period (Default)10.0mS
    Length measurement range 0.1m~6.00m
    Measurement precision ±1%(Calibration restriction lock bolts cutting dimensions )
    Measurement method (Default) Manual. Length automatic/manual display
    Sound speed settings (Default) 5700m/S, (4000~6000 ,10m step)
    Sensitivity (Default)2.0, Level regulation range 0~4.0
    Side axis waves displaying (Default) Start 0m, Stop 4.0m(9m change)
    Battery level Main body batteries level will be shown at display
    If there any drop of voltage, the lamp will flash
    Remaining volume of batteries will be shown at display
    Measurement date Automatic settings of PC calendar
    Measurement operation Settings/Measurements freeze/Save/Reading/Measur. Stop
    Display/recording unit PC (Panasonic, CF-18AC1AX)
    Recorded data 10GB (Bolts, approx. 180.000 pcs)
    Market memory card - 32MB, 6000 pcs
    Power supply Main body: Built-in batteries 12V (approx. 5H)、AC100V
    Display: Built-in batteries (approx. 6H)、AC100V
    Outer dimensions approx. 275×240×115(main body+displaying)
    Weight approx 4.7Kg (main body+display)
    Carrying case Aluminium case, Weight is almost 2.0Kg
    * Detection ability may be changed depends on polished part, bolt head part and mortal part or bendng
    Standard accessories
    Sound probe (UBS-5KR) Built-in eco jelly 1 PC(Panasonic CF-18AC1AX) 1 pack
    Sound probe cable (UBL-3M) 1 Shoulder strap 1
    Spare eco-jelly (PEM-100) 1 Operation manual and backup CD 1
    PC card (DAQcard-6024E) 1 Aluminium trank 1
    PC card connecting cable (pre-implementation finished)and accessories 1 Measuring data display programm 1
    Main body AC adaptor (charger) 1 Report making programm 1
    Supplemented parts
    Sound probe (with eco-jelly)   UBS-5KR Oscillator protection cap
    Sound probe cable        UBL-3M UBC-20R Botl diameter 20φ~36φ
    Eco jelly 100g /10 packs   PEM-100W  UBC-18R  Botl diameter 18φ~26φ
    Eco jelly 100g /with pump  PEM-100  UBC-12R  Botl diameter 12φ~20φ
